Description

Ravemen FR500 HeadLight

With 500 lumens of nighttime illumination and multiple daytime flash modes, the Ravemen FR500 keeps you visible. Its space-saving design fits Garmin bike computers, while the intelligent auto-on/off feature ensures maximum hands-free convenience.

Designed to tackle any trail, it's the ideal front light for daytime safety and nighttime illumination.

Using the included safety tether is recommended to secure the device to the handlebars in the event of a crash.

Maximum rated battery life:

Up to 6 hours and 30 minutes in low-intensity steady light mode
Up to 36 hours in slow-flash mode

Version: FR500 for Garmin/WAHOO (Bryton adapter sold separately)

Nighttime illumination
High-brightness 500-lumen illumination, suitable for nighttime riding. Two high-brightness LEDs provide nighttime illumination with a unique lens effect.

Daytime Warning
Eye-catching warning flash mode to make you visible during daytime riding.

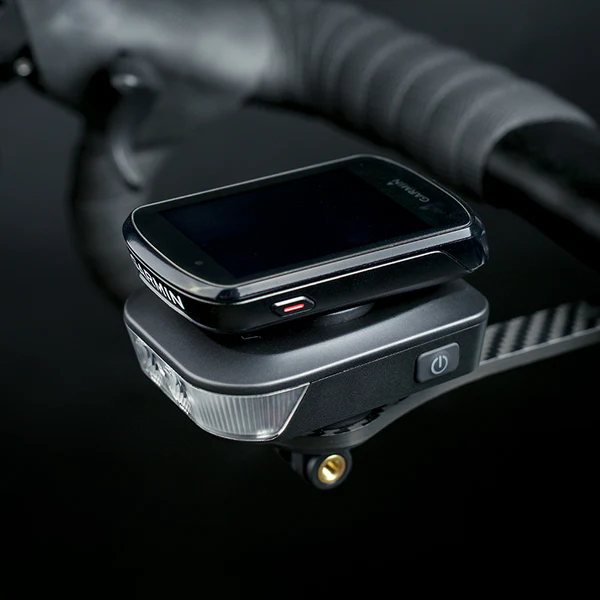

Integrated Bike Computer Stacking Design
The integrated bike computer mount design adds a warning light between the mount and the bike computer, saving space while still providing illumination. Compatible with major bike computers and all Garmin-style mounting bases.

Power Bank Function
Large 2000 mAh battery provides emergency charging for bike computers.

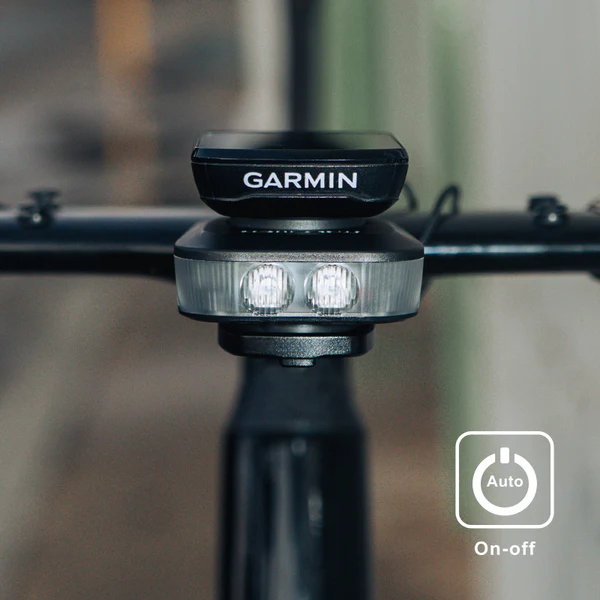

Auto Power On/Off Function
The FR500 automatically turns off after 2 minutes of inactivity and automatically turns back on when vibration is detected.

Heat Dissipation Design
Aluminum alloy heat dissipation design (the detailed image highlights the airflow grooves).

Battery Indicator
When the light is off, press the power button to activate the battery indicator and check the battery level. Battery Indicator: Green: 40%~100%; Red: 5%~40%; Flashing Red: <5%.

IPX6 Water Resistance
No need to cover up when it rains, ensuring cycling safety in all weather conditions

Notes
1. The FR500 cannot be used with Bryton computers without the QTM04. Select the FR300+QTM04 version for Bryton computers.

2. The FR500 does NOT work with the original Wahoo Element Bolt aerodynamic front mount.

3. DO NOT charge your phone or other devices with the light, as this may damage the light and void the warranty.

4. DO NOT charge or discharge the light when it rains.

Specifications
LED: Two high-efficiency LEDs

Battery: 2000 mAh/3.7 V rechargeable lithium-polymer battery

Dimensions (headlight): 82 mm (L) x 60 mm (W) x 29 mm (H)

Weight (headlight): 101 g

In the box
FR500*1, USB-C cable*1, USB-C to Micro USB cable*1, Wahoo adapter kit*1, safety tether*1, manual/warranty card*1
