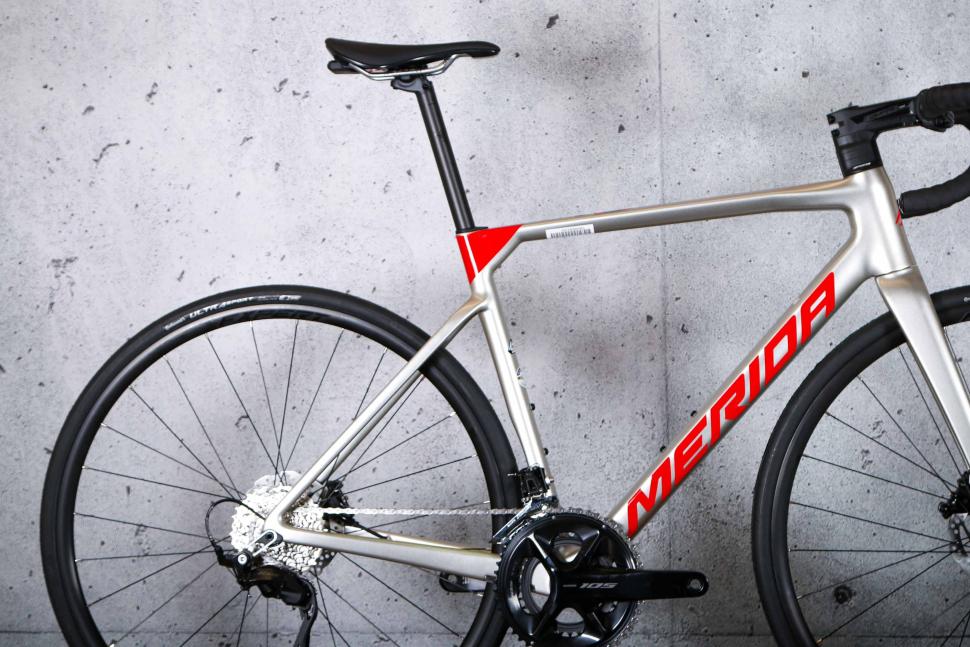

Merida SCULTURA 4000 105 2x12 2025 (Titan-Red, Size S)

Born from the same geometries as the REACTO, Scultura focuses attention on the athlete looking for a fast bike on all terrains, including long climbs.

Based on the latest, smoothest Shimano 105 12-speed groupset and featuring our award-winning SCULTURA CF3 full carbon frame, the SCULTURA 4000 is far from an entry-level bike to our latest SCULTURA frame family. Like its bigger sisters, it combines a long list of air slicing features and race-proven geometry, adapted from our REACTO family, with low weight and class-leading ride comfort, creating an almost unbeatable package.

The fifth generation of our lightweight racing bike combines exceptional handling with improved comfort and an even more aerodynamic frame. Thanks to the integration of aerodynamic details selected from our award-winning and tested REACTO aerodynamic bike, the SCULPTURE is the most aerodynamic version ever. However, it remains true to its goal of lightness, agility and rider comfort; it actually takes these factors to the next level. The SCULPTURE demonstrates exceptional flexibility, providing the rider with class-leading ride comfort that will help keep the body fresh for the final sprint or climb. The CF5 and CF3 carbon versions share their geometry with our REACTO, given the race-tested handling of the Team Bahrain Victorious rider. Available in carbon and aluminum and with a disc brake or rim brake option, our classic road bike combines exceptional comfort with whippet-like acceleration and a class-leading climbing pedigree.

SPECIFICATIONS
SCULTURA FRAME CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12 mm standard axle
Pressfit 86.5

COLOR TITAN (RACE RED)

FORK CF3 disc

BRAKES Shimano 105
Shimano RT10 DISCS
FSA ACR HEADSET
MERIDA EXPERT SLII HANDLEBAR
FSA SMR ACR HANDLEBAR STEM
material: aluminium
-6° stem angle
90mm-XXS/XS, 100mm-S, 110mm-M, 120mm-L/XL
MERIDA ROAD Expert GRIPS

Shimano 105 derailleur
Shimano 105 gear shifter
SHIFTERS Shimano 105 disc

Shimano 105 CRANKSET
50-34 teeth
165mm-XXS, 170mm-XS, 172.5mm-S/M, 175mm-L/XL

MERIDA EXPERT CC SEAT POST
27.2mm diameter
15mm setback
material: Carbon

MERIDA EXPERT SL SADDLE

CHAIN ​​Shimano CN-M6100-12
Shimano CS-R7100 SPROCKET SET
11-34 teeth
12 speed
Shimano SM-BB71-41B BOTTOM BRACKET

MERIDA EXPERT SL WHEELS
17mm inner width
22mm height
material: aluminium
Tubeless ready (tubeless tape and valves not included)
VP CLK170F / VP CLK270R HUBS
MERIDA EXPERT SL PINS
RAYS Double Butted Black stainless

Maxxis Highroad TIRES

TOTAL WEIGHT ALLOWED 120 kg
