Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W

megamo reason crb 03 2027 with dji avinox m2s kashima 38 160mm garnet color
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 2
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 3
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 4
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 5
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 6
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 7
Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W - Image 8

Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W

7.999,00€

Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W

The New Era of High-Performance E-MTBs.

The Megamo Reason CRB 03 2027 in the stunning Garnet colorway is a technological masterpiece. Powered by the revolutionary DJI Avinox M2S system delivering 1300W peak power and an ultra-high-density 800Wh battery, this 160mm full-carbon rig is built to redefine enduro boundaries. Race-ready setup featuring Fox Factory Kashima suspension, Sram T-Type wireless drivetrain, and DT Swiss wheels.

  • Size: S (Recommended for heights 155-170 cm)

  • Motor: DJI Avinox (150Nm Boost / 1300W Peak)

  • Price: € 7,999.00

Out of stock

SKU: MegamoReasonCrb03Garnet2027-S Category: Tags: ,
Megamo

Description

Megamo Reason CRB 03 (2027) - Garnet - Size S - DJI Avinox 1300W

DJI Avinox M2S Ecosystem: Brutal Power & Smart Control

The DJI Avinox M2S system is the beating heart of this machine. With an incredibly low weight of 2.52kg, the motor delivers a nominal torque of 130Nm, reaching a massive 150Nm in Boost mode. The 1300W peak power ensures unparalleled climbing ability on the steepest gradients.

  • DP100 Display: 2-inch full-color OLED touchscreen with 800 nits brightness for perfect readability even in direct sunlight.

  • Smart Connectivity: Fine-tune assistance parameters via the DJI Avinox App and manage your ride with wireless handlebar controllers.

800Wh High-Density Battery & Ultra-Fast Charging

Range anxiety is a thing of the past thanks to the 800Wh high-energy-density battery. To minimize downtime, the bike includes the Avinox 12A Fast Charger, capable of restoring energy at record speeds compared to traditional systems.

Elite Components & Performance Geometry

The Reason CRB 03 makes no compromises:

  • Suspension: Fox 38 Factory with Grip X2 damping and Float X Factory rear shock (Kashima coated).

  • Drivetrain: The robust Sram Eagle T-Type (Hangerless) system for flawless shifting under high torque load.

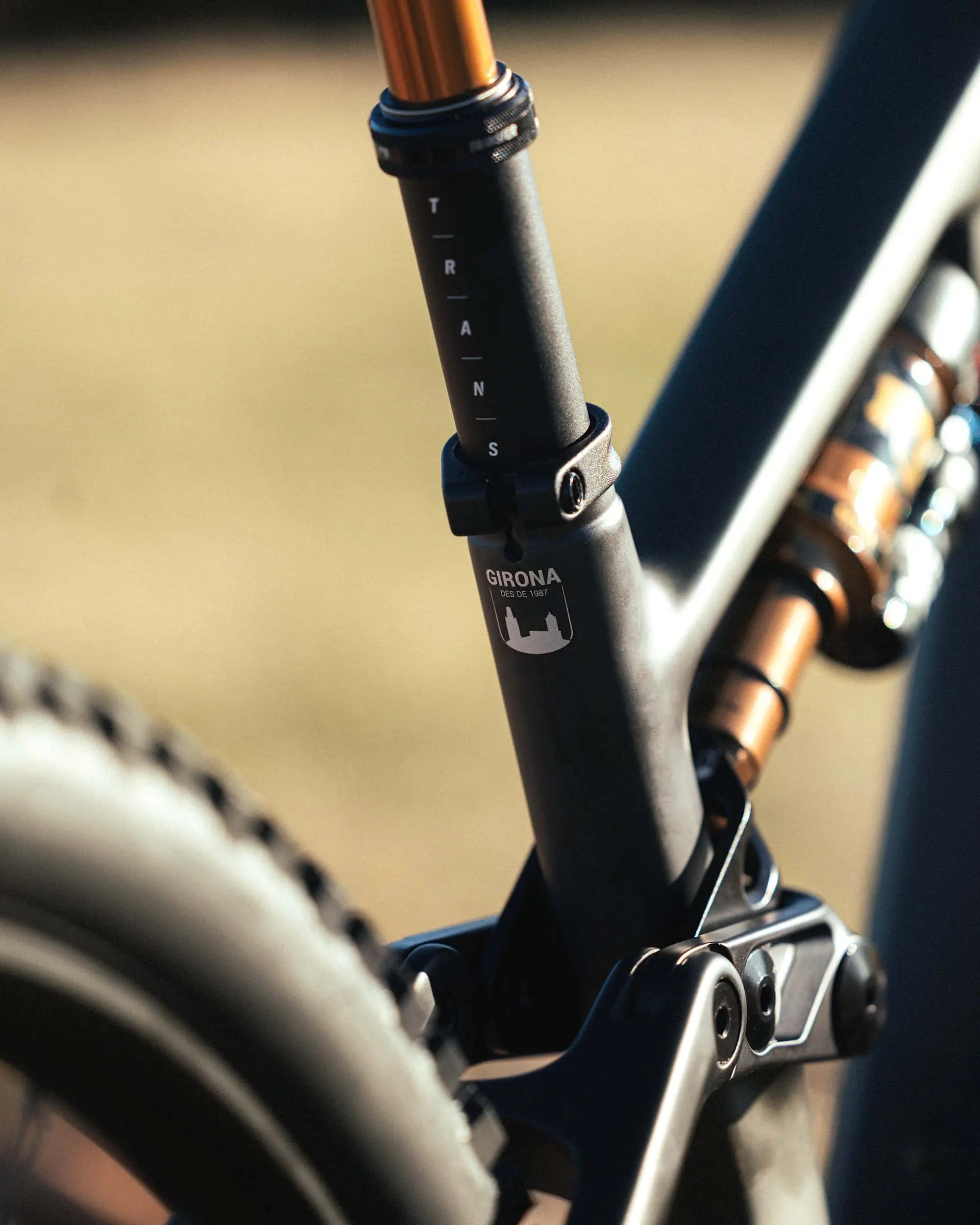

  • Cockpit: Race Face Carbon handlebar and Fox Transfer Factory dropper post.

Technical Specifications Table

CategoryComponent
FRAMEReason Full Carbon, Alloy shock extension, Full Integrated Battery, 12x148 Boost, 160mm travel
FORKFox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2 Kashima
REAR SHOCKFox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55
HEADSETAcros AZA-288R2 ZS56 blocklock 135º
MOTORAvinox M2S - 150Nm (Boost mode) / 130Nm - 1300W Peak
BATTERYAvinox 800 Wh, 35.9V, IP56
DISPLAYAvinox DP100, 2" full-color OLED touchscreen, 800 nits
CHARGERAvinox 12A Fast Charger
REAR DER.Sram 90 Eagle T-Type, 12-Speed
SHIFTERSSram 90 Eagle T-Type Wireless
CRANKSETSram Eagle T-Type Avinox 36T, 165mm
CASSETTESram XS 1270 T-Type, 10-52T
BRAKESShimano XT M8220, Hydraulic 4-Piston, RT-CL800 203 mm Rotors
WHEELSDT Swiss H 1900 SPLINE, 30mm Tubeless Ready, Ratchet LN 18
TIRESFront: Maxxis Assegai 2.5 DD 3C MaxxGrip / Rear: Maxxis Minion DHR II 2.4 DD 3C MaxxTerra
HANDLEBARCarbon Race Face 35x800, Rise 20mm
STEMSatori Ursa, 35 x 35 mm
SEATPOSTFox Transfer Factory Ø31.6 mm, 150 mm Drop (Size S)
SADDLEFizik Terra Aidon X5, 145 mm

Shipping & Warranty

  • Insured Shipping: Delivered via specialized courier within 3-5 business days.

  • CicloBottega Setup: The bike is delivered 95% assembled, tuned, and tested by our mechanics. You only need to align the handlebar and install the pedals.

  • Megamo Lifetime Warranty: Megamo offers a lifetime warranty on the frame for the original owner (registration required on megamo.com within 30 days).

  • Electronics Warranty: The DJI Avinox system is covered by a 2-year official warranty.
